The kitchen or industrial fume will affect the atmospheric environment, indoor air quality and building appearance, Now most fume purifiers and corresponding fans are installed on the roof or on a platform. This is different from the traditional system configuration is that the fume purifier and the fan are separately installed and connected through a duct or a plenum box, installation cost is high, and large space requirement. Besides, if the static pressure box production or duct connection is unreasonable, it will cause air with fumes to reduce the effective area through the purifier, thereby reducing the efficiency of oil fume purification.

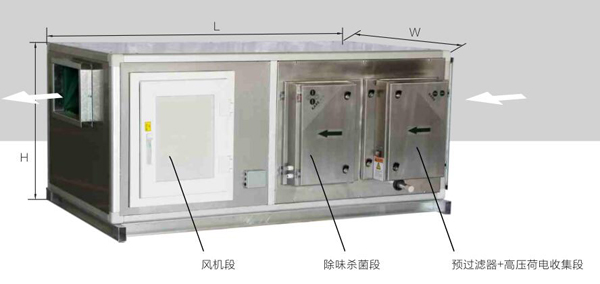

KARE AIR Eco Clean Package Unit integrates the electronic air purification section, odor removal section, UVC sterilizing section and fan section, solving the problems like large occupied space and unsightly appearance caused by separate installation of the traditional fume purifier & odor removal section and the oil & fume fan, as well as the unreasonable air distribution that affects the purification effect caused by the reducing of the connecting tube. In addition, the unit is characterized by simple and easy design configuration and
construction & installation procedures.

FEATURES
· Integrated design and lowest air duct connection requirements help save space and installation cost.
· A channel base design, no extra base is required.
· No duct transition required, so it is with good air distribution.
· The best purification performance.
· Sandwich panel housing to reduce operation noise and viberation.
· Integrated visual effect and good structure design.
· Steel plate or stainless steel SUS304 are optional for the casing.
· Variable frequency control cabinet can be supplied with the unit.
· Reliable waterproof design to meet the IP65 protection grade, suitable for outdoor installation, additional rain protection is not required.
· Other KARE AIR electronic air purification technologies are integrated.
